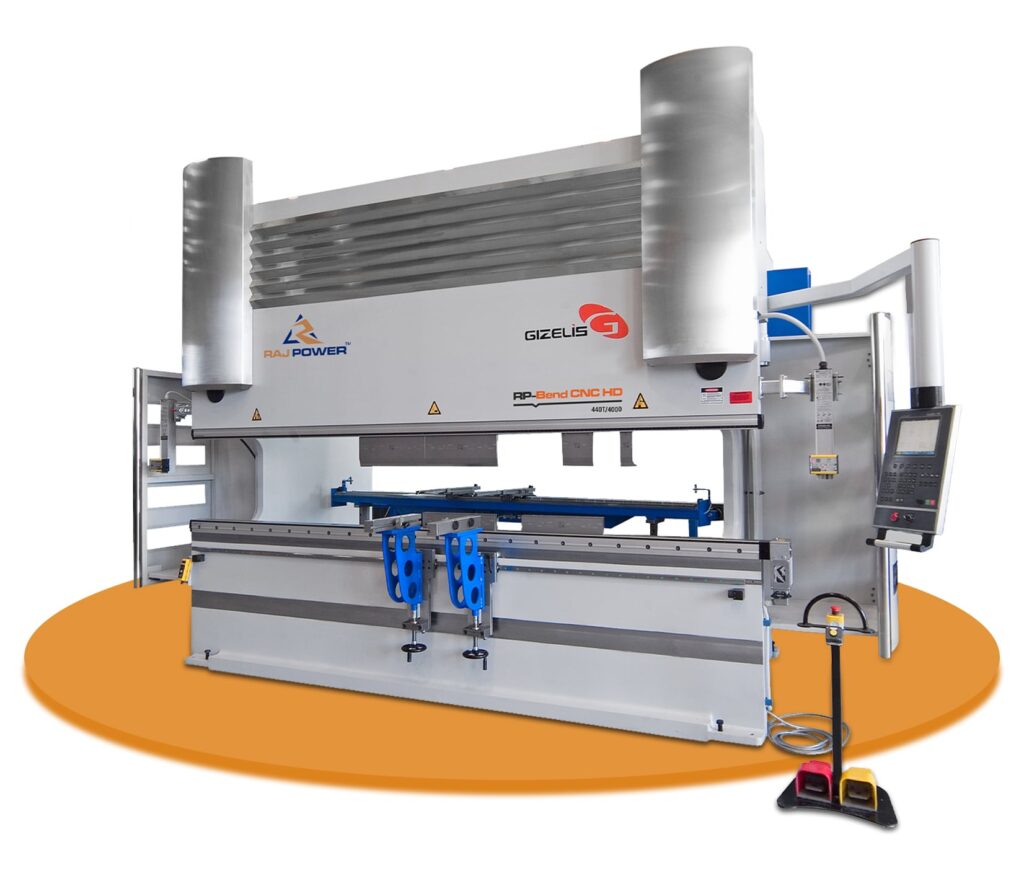

CNC Press Brake (HD Series)

Rajesh Power Press

CNC Press Brake (HD Series)

Send Inquiry

Standard Features with Cybelec Cyb Touch 8 PS Controller

  • Cyb Touch 8 PS Controller
  • Y1, Y2, Independent Hydraulic Cylinders
  • Proportional Valve Technology
  • X Axis Back Gauge
  • Manual Crowing System
  • Mechanical Upper Tool Clamping
  • Mechanical Lower Tool Clamping
  • 2 Front Gauge Support
  • 2 Back Gauge Finger
  • Standard Set of Top and Bottom Tools

Standard Features with Cybelec Cyb Touch 12 PS Controller

  • Cyb Touch 12 PS Controller
  • Y1, Y2, Independent Hydraulic Cylinders
  • Proportional Valve Technology
  • X – R Two Axis Back Gauge
  • Manual Crowing System
  • Mechanical Upper Tool Clamping
  • Mechanical Lower Tool Clamping
  • 2 Front Gauge Support
  • 2 Back Gauge Finger
  • Standard Set of Top and Bottom Tools
Cyb Touch 8 PS Controller

Cybec Touch 8 PS CNC Controller

1. Easy Operating

  • 7″ Color graphic CRT screen, with LED
    backlight control.
  • Intuitive user-friendly interface.
  • Simple pages, clear display, large keys.
  • Large, vivid, and high-contrast fully
    touchscreen.
  • Complete programming for efficient mass
    production with multiple bends.
  • Easy single bends with EasyBend page.
  • On-line help and interactive warning popups.
  • Comfortable wireless data backup and
    software updating using PC or Notebook.
  • A large variety of languages is available.

2. Better Bending

  • Various automatic calculations of bend functions.
    Bending sequences and programs can be memorized.
    Angle, pressure, and crowning management.
    Easy manual movement.
    Offline 2D software is available.

3. Powerful

  • Control 3 axes (with optional 4th axis)
    2D graphic profile creation with manual sequencing (option).
    Bend allowance calculation.
    Pressure-crowning calculation.
    Modular tools for each part or bend.
    Angle and back gauge correction.
    Tele maintenance via wireless connection with PC or notebook.
    USB port for memory stick for data transfer/backup.
Cyb Touch 12 PS Controller

Cybec Touch 12 PS CNC Controller

1. Easy Operating

  • 7″ Color graphic CRT screen, with LED
    backlight control.
  • Large, vivid and high-contrast fully
    touchscreen.
  • Simple pages, clear display, large keys.
    Intuitive user-friendly interface.
  • Complete programming for efficient mass-production with multiple bends.
  • Easy single bends with EasyBend page.
  • On-line help and interactive warning popups.
  • Comfortable wireless data backup and
    software updating using PC or Notebook.
    Large variety of languages available.

2. Better Bending

  • Various automatic calculations of bend functions.
    Bending sequences and programs can be memorized.
    Angle, pressure and crowning management.
    Easy manual movement.
    Offline 2D software available.

3. Powerful

  • Control 4 Axis.
    Automatic bend sequencing (option).
    Bend allowance calculation.
    Pressure – crowning calculation.
    Modular tools for each part or bend.
    Angle and back gauge correction.
    Tele maintenance via wireless connection with PC or notebook.
    USB port for memory stick for data transfer/backup.

Tooling Drawing CNC

Technical Parameters

Model No.RP-Bend CNC HD 80/2100RP-Bend CNC HD 80/2900RP-Bend CNC HD 80/3400RP-Bend CNC HD 110/3400RP-Bend CNC HD 140/3400RP-Bend CNC HD 140/4400RP-Bend CNC HD 175/3400RP-Bend CNC HD 175/4400RP-Bend CNC HD 175/6100RP-Bend CNC HD 210/3400RP-Bend CNC HD 210/4400RP-Bend CNC HD 210/6100RP-Bend CNC HD 290/3400RP-Bend CNC HD 290/4400RP-Bend CNC HD 290/6100
Bending Force808080110140140175175175210210210290290290
Working Length210029003400340034004400340044006100340044006100340044006100
Distance Between Uprights155025503050305030504050305040505050305040505050305040505050
Thorat Depth400400400400400400400400400400400400400400400
Daylight515515515515515515515515515515515515515515515
Punch Stroke250250250250250250250250250250250250250250250
Table Width80808080808080-22080-22022080-22080-22022080-220220220
Fast Speed180180180180180180160160160160160160150150160
Working Speed202020202015201510201510151010
Upstroke Speed160160160160160160140140140130130130120120120
Hydraulic Pressure (Max)275275275275275275275275275275275275275275275
Main Electrical Motor11111115151518.518.518.5222222303030
Length320037004400440044005400440054007400440054007400440054007400
Width170017001700170017001800180018001800195019501950195019501950
Height295029502700275028003100295031503400**300032003600**310034003900**
Weight (Approx.)73008000850095001100013600125001560023000145001800024000162002200028000

*All dimensions are in mm
** The machine is partially in the ground (Special foundatation required )
