What is a Hydraulic Press Machine?

A hydraulic press is a kind of mechanical machine that uses liquid to transfer energy to shape and deform various types of metals. It works on Pascal’s principle. The machine is mainly used for uplifting the Application of smaller forces. Pascal’s principle states that the intensity of pressure in a static fluid is transmitted equally in all directions.

The hydraulic presses, commonly provided by hydraulic press manufacturers, contains three parts: the mainframe, the power system, and the hydraulic control system. In this, the pressure in a liquid is applied by a pump that works like a pump and creates mechanical force. Various types of presses, such as the industrial hydraulic press, H-frame hydraulic press, and C-frame hydraulic press, are designed to handle different industrial tasks.

Hydraulic Press Machine Working :

Generally, multiple small rams are used rather than one large ram because it is easy to control the thrust forces as compared to large sizes. The number of rams depends upon the working load. The hydraulic pressure of fluid drives the ram. A pump and hydraulic accumulator are used to supply the high-pressure liquid. The Hydraulic accumulator works as a junction point between the pump and the rams. When the press is stationary, a hydraulic accumulator stores the high-pressure liquid. When strong thrust is necessary for operation, a hydraulic press is used. This working mechanism is typical for machines like the 20 ton hydraulic press, 50 ton hydraulic press, and even larger presses.

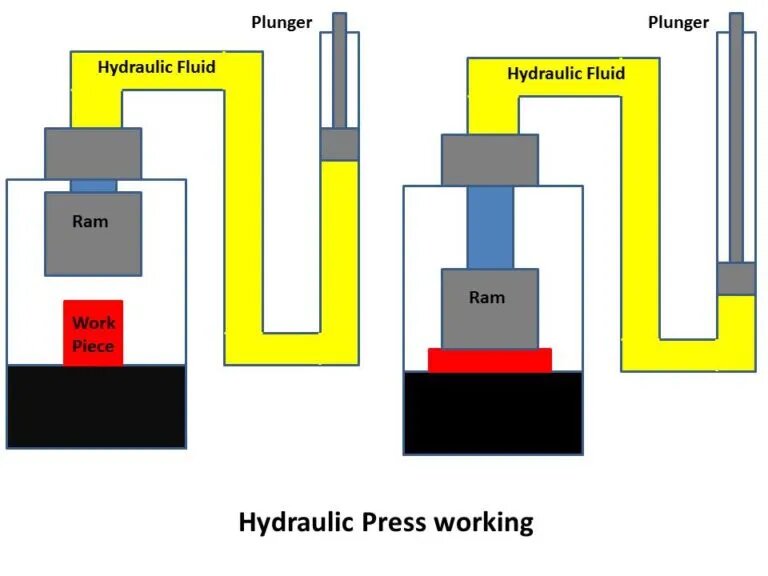

Let’s see the hydraulic press machine working with the help of this image:

Safety rules:

1. Those who don’t know about operating the Hydraulic Press machines can not start the machine without permission.
2. When you find some issues during the working of machines like serious oil leakage or loud noise, the vibration then immediately stops the machine, and the analyzer should find out the reason and fix the issue.
3. Do not use the machine when it exceeds the maximum limit of eccentricity
4. In the end, just put the slider in the lowest position

Advantages of Hydraulic Press Machine :

As compared to the manual machine the hydraulic press machine has a lighter weight with a small number of parts used for forming the shapes of sheet metal.

The main advantages of Hydraulic press machines are the following:

1. Weight reduction and material conversation
2. Reduce the number of Parts at a lower cost of molds
3. Low Initial and production cost
4. Capacity for high tonnage, such as with the 150 ton hydraulic press or 200 ton hydraulic press.
5. It is safe compared to a Mechanical press
6. Built-in overload protection
7. Less noise
8. Generates immense amount of pressure
9. Less floor space is required for this machine
10. A machine with having simple design
11. Greater adaptability
12. The tools used in this machine have a longer lifespan.
13. Increase the strength and rigidity

Disadvantages:

1. The Pressure is regulated at a certain level and can not exceed more than that.
2. Some hydraulic fluids are flammable.
3. More maintenance is required.
4. There is a carbon footprint.
5. There is a possibility of Hydraulic fluid leakage.
6. The operational speed is low.
7. They consume high-energy

Applications:

1. Aerospace industry
2. Metal forming operations and punching
3. Thermoplastic Industries
4. Automotive parts
5. Molding
6. SMC (Sheet Molded Composites)
7. Carbon Fiber Molding
8. Sheet Molded Composites (SMC)
9. Glass Mat Transfer (GMT)
10. Deep drawing operations
11. Blanking operations
12. Molding operations
13. Forging operations
14. Clinching operations
