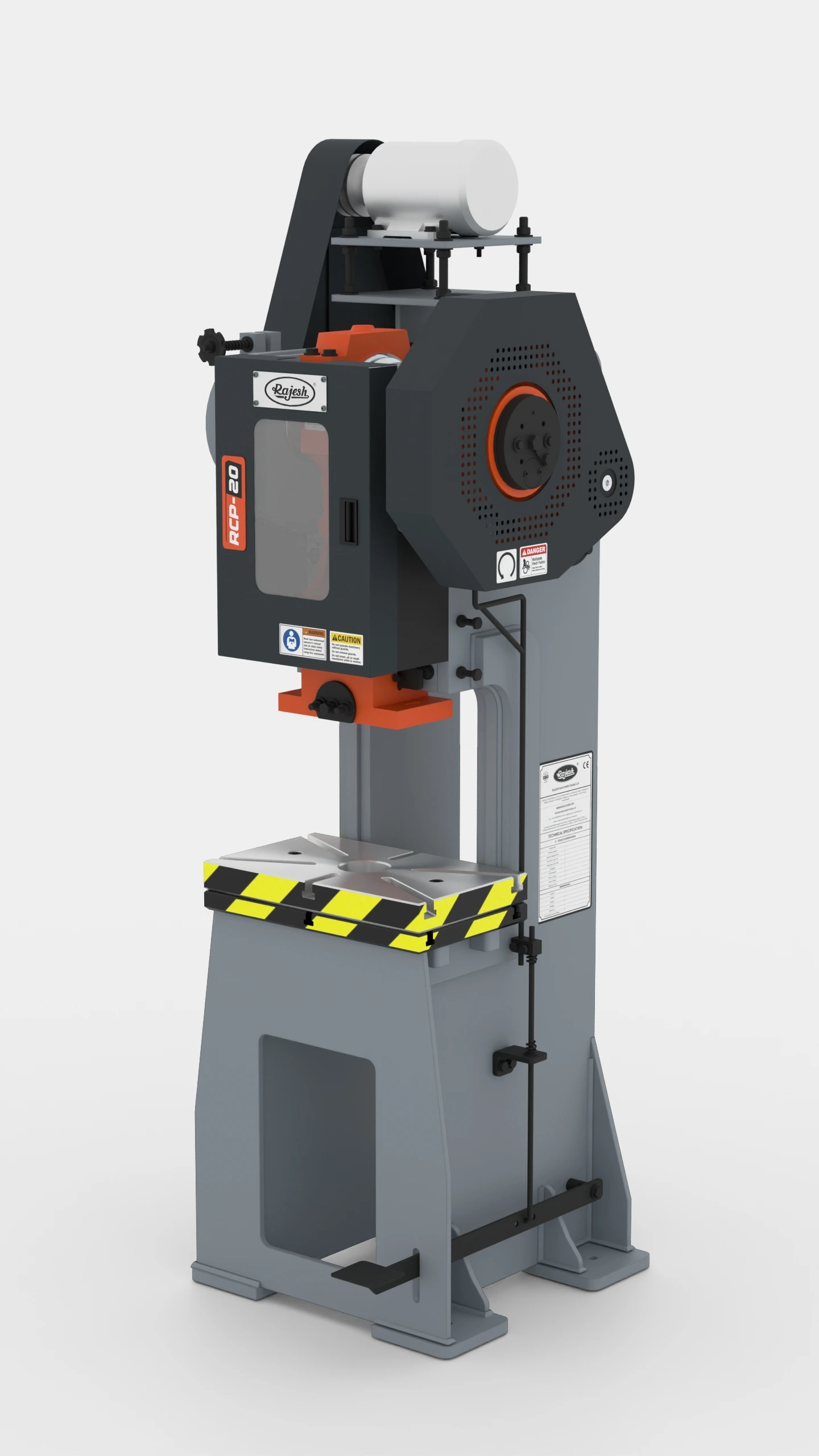

RCP 20 Ton C Frame Power Press –
Durable Build, Smooth Operation & Precision Output

The RCP-20T C-Frame Power Press offers robust tonnage and exceptional precision, ideal for medium to heavy industrial tasks. It provides consistent performance for high-precision metal forming, bending, and punching applications, ensuring quality and reliability in demanding environments.

Key Features of RCP-20T C-Frame Power Press

Tonnage Capacity

20 Ton – perfect for medium-duty industrial applications

Precision Performance

Adjustable stroke and deep-throat design for maximum accuracy

Durability

Rugged construction for extended operational life

Metalic Control

Energy-efficient with quiet operation

Safety Mechanisms

Built-in operational safety features

Key Features of RCP-20T C-Frame Power Press

Tonnage Capacity

20 Ton – perfect for medium-duty industrial applications

Precision Performance

Adjustable stroke and deep-throat design for maximum accuracy

Durability

Rugged construction for extended operational life

Metalic Control

Energy-efficient with quiet operation

Safety Mechanisms

Built-in operational safety features

RCP-20T Press Machine Specifications

Specification
Details
Model No.
RCP-20T
Tonnage
20 Ton
Crank Shaft Diameter
70 mm
Stroke Length
60 mm
Stroke Adjustment
20 – 60 mm
Bed Size
400 × 250 mm
Specification
Details
Distance Bed to Ram
250 mm
Hole in Ram
40 mm
Hole in Bed
100 mm
Flywheel Diameter
500 mm
Motor H.P. Required
5 HP
Dimensions (L×W×H)
1050 × 950 × 1600 mm
Specification
Details
Model No.
RCP-20T
Tonnage
20 Ton
Crank Shaft Diameter
70 mm
Stroke Length
60 mm
Stroke Adjustment
20 – 60 mm
Bed Size
400 × 250 mm
Distance Bed to Ram
250 mm
Hole in Ram
40 mm
Hole in Bed
100 mm
Flywheel Diameter
500 mm
Motor H.P. Required
5 HP
Dimensions (L×W×H)
1050 × 950 × 1600 mm

Buy RCP-20T Power Press Machine Online

For a hassle-free purchase, get in touch with Rajesh Machine Tools to secure factory-direct pricing and on-time delivery.

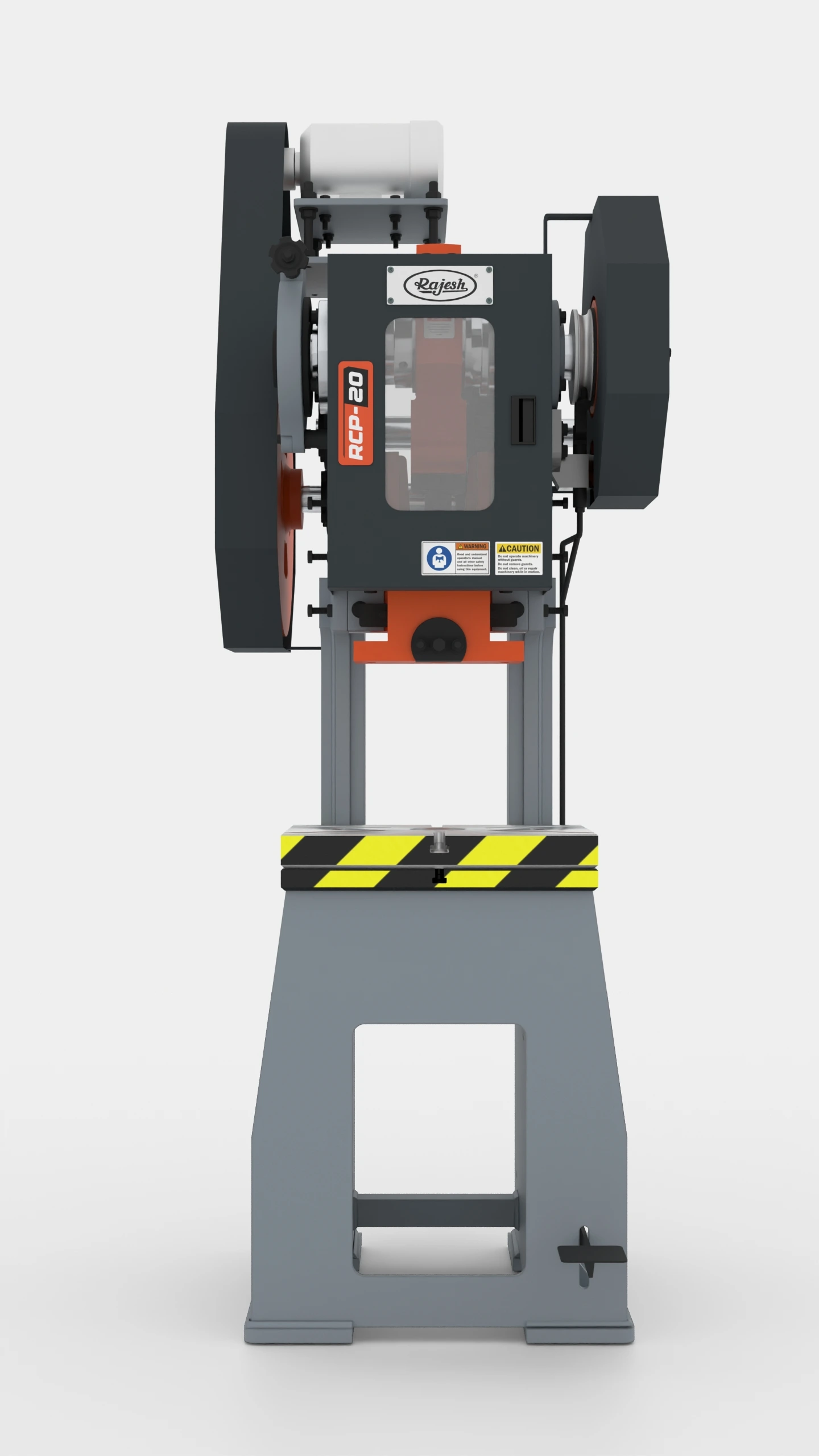

Applications of RCP-20T

Power Press Machine

Why Choose Rajesh RCP-20T Power Press?

Proven Engineering

Backed by years of expertise in press machine manufacturing

Made in India

Crafted with high-quality standards

Industrial Performance

Reliable output in medium to heavy-duty settings

After-Sales Support

Nationwide service and support

What is the Price of the RCP-20T C-Frame Power Press?

Contact us for The best quote as per your specific production requirements. Our team is ready to provide detailed pricing and delivery schedules.
